Differential Carrier: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Position the differential assembly in the axle housing.

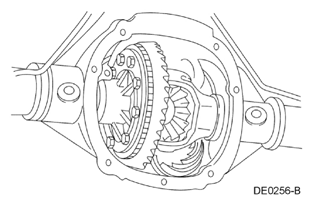

Fig 1: Identifying Differential Assembly In Axle Housing
Courtesy of FORD MOTOR CO.
Install the originally removed differential bearing shim on the LH side.

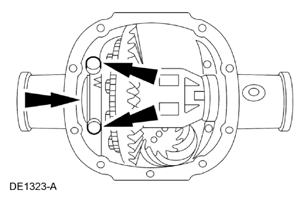

Fig 2: Identifying Differential Bearing Shim Size
Courtesy of FORD MOTOR CO.
NOTE: Apply pressure toward the LH side to make sure the LH differential bearing cap is seated.

Install the LH differential bearing cap and loosely install the 2 differential bearing cap bolts.

Fig 3: Locating Differential Bearing Cap Bolts
Courtesy of FORD MOTOR CO.
Install the original differential bearing shim on the RH side.

Fig 4: Installing Differential Bearing Shim On RH Side
Courtesy of FORD MOTOR CO.
Using the Differential Shim Installer, fully seat the differential bearing shims.

Fig 5: Seating Differential Bearing Shims Using Installer
Courtesy of FORD MOTOR CO.
Install the RH side differential bearing cap and tighten the 4 differential bearing cap bolts.
- Tighten to 122 Nm (90 lb-ft).

  Fig 6: Locating Differential Bearing Cap And Bolts
  Courtesy of FORD MOTOR CO.
Rotate the differential assembly to make sure it rotates freely.

Fig 7: Rotating Differential Assembly
Courtesy of FORD MOTOR CO.
Adjust the ring gear backlash. For additional information, refer to RING GEAR BACKLASH ADJUSTMENT .
Install the axle shafts. For additional information, refer to AXLE SHAFT .
