Axle Housing: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Additive Friction Modifier XL-3 (US); CXL-3 (Canada) |
EST-M2C118-A |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A |

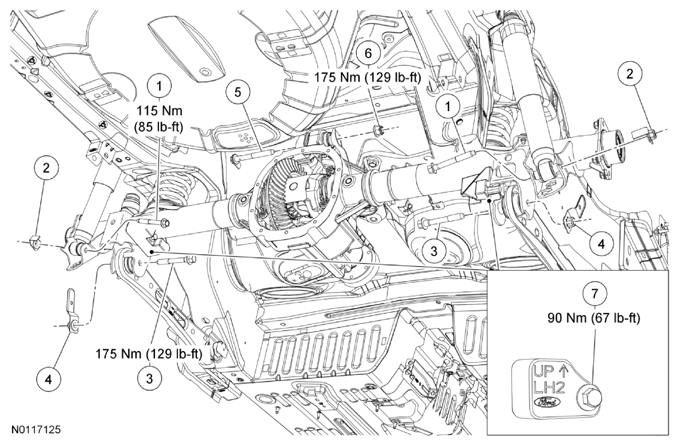

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Shock absorber lower bolts (part of service kit 18008) (2 required) |
| 2 | - | Shock absorber lower flag nuts (part of service kit 18008) (2 required) |
| 3 | W704888 | Lower arm bolts (2 required) |
| 4 | W704991 | Lower arm nuts (2 required) |
| 5 | W710443 | Upper arm bushing bolt |
| 6 | W520215 | Upper arm bushing nut |
| 7 | 4A263 | Mass dampener (LH shown in illustration, RH similar) |
