Traction-Lok® differential shown Torsen® differential similar: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

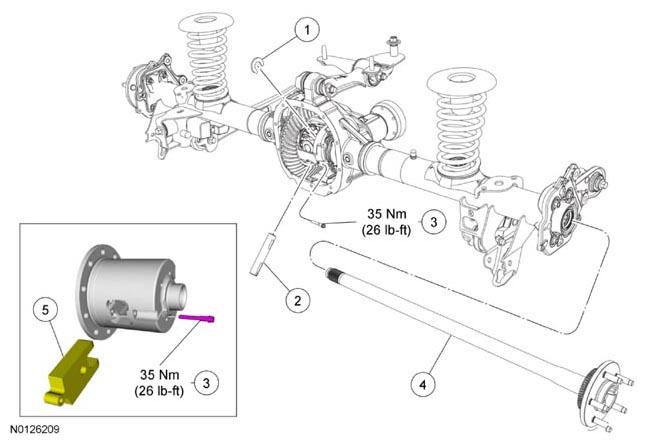

G07986153
Item Part Number Description
1 4N237 Axle shaft U-washer
2 4211 Differential pinion shaft (Traction-Lok®)
3 4241 Differential pinion shaft lock bolt
4 4234 Axle shaft
5 Differential thrust plate (Torsen®)
