Throttle Position (TP) Sensor - 5.8L (4V): Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ACL outlet pipe. Refer to INTAKE AIR DISTRIBUTION & FILTERING .

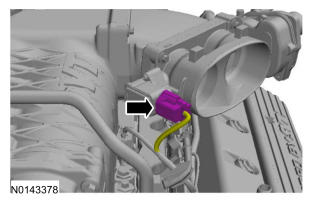

Disconnect the TP sensor electrical connector.
NOTE: Do not put direct heat on the TP sensor or any other plastic parts because heat damage may occur. Damage may also occur if ETB temperature exceeds 120°C (248°F).

NOTE: Do not use power tools.

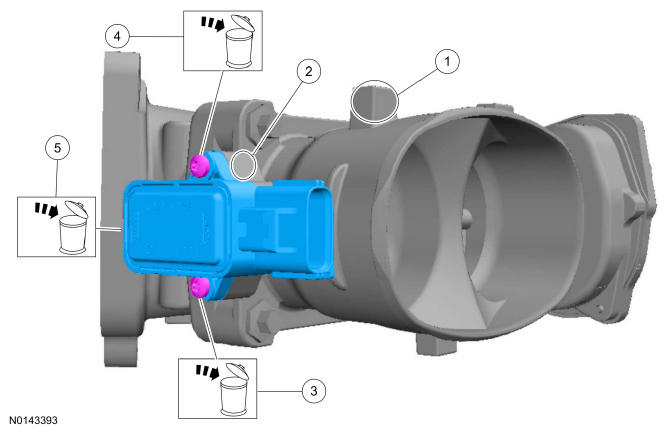

Remove the TP sensor.
1. Using a heat gun, apply heat to the top of the ETB until the top TP sensor bolt ear reaches approximately 55°C (130°F). This should take no more than 3 minutes using an 1, 100-watt heat gun. The heat gun should be about 25.4 mm (1 in) away from the ETB.
2. Monitor the temperature of the top TP sensor bolt ear on the ETB with a digital laser or infrared thermometer, while heating the ETB.
3. Hand tools only.
  Discard the specified component. Follow local disposal regulations.
4. Hand tools only.
  Discard the specified component. Follow local disposal regulations.
5. Discard the specified component. Follow local disposal regulations.
