Supercharger Bypass Vacuum Actuator: Installation
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
-

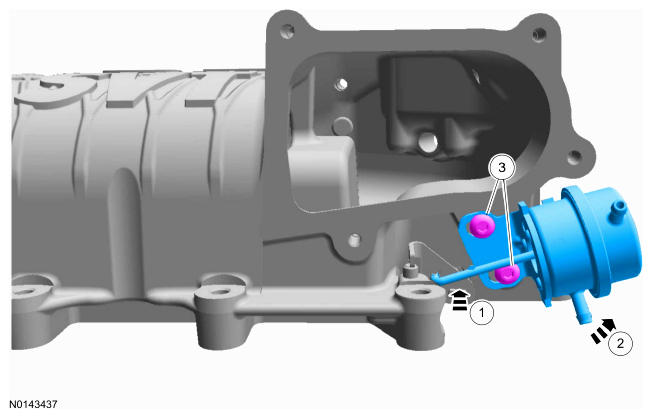

NOTE: The actuator adjustment tool included with the new actuator kit must be used when installing the Supercharger (SC) bypass vacuum actuator. Failure to correctly adjust the actuator will result in incorrect operation of the SC assembly.
General Equipment: Actuator Adjustment Tool.
- Remove General Equipment: Actuator Adjustment Tool.
- Install the SC. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
