Fog Lamp: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

3.7L vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .

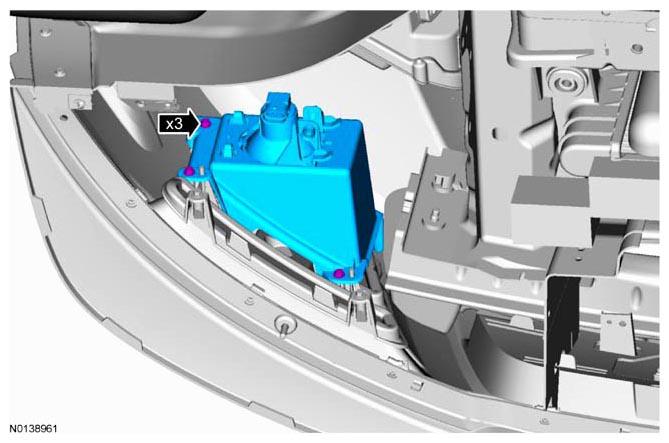

Three on each side.
- To install, tighten to 3.2 Nm (28 lb-in).
To install, tighten to 1.9 Nm (17 lb-in).
5.0L vehicles
Remove the front bumper cover. Refer to BUMPERS .
GT500 vehicles
With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .

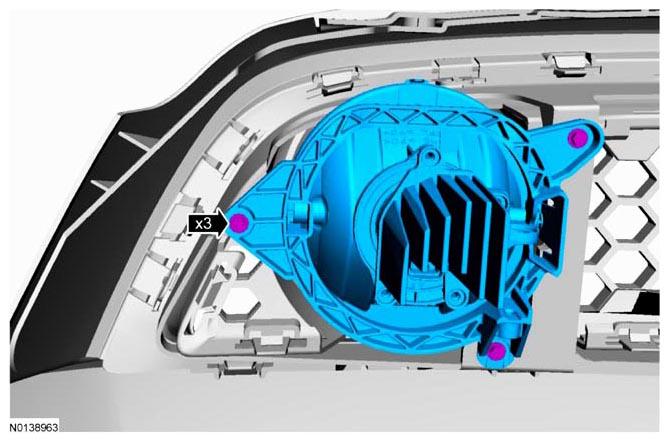

On each side.
- To install, tighten to 3.2 Nm (28 lb-in).

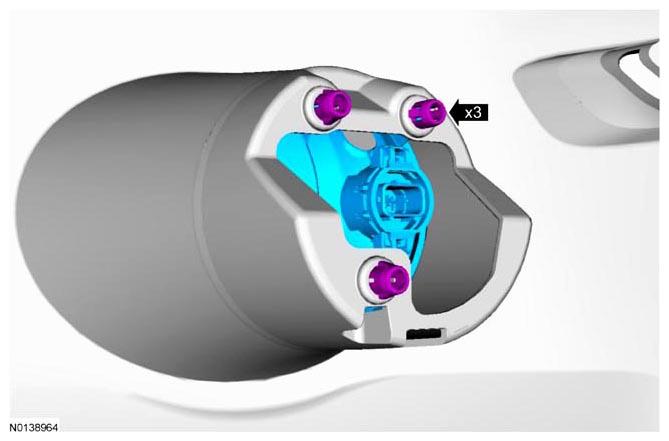

To install, tighten to 3.2 Nm (28 lb-in).
To install, tighten to 3.2 Nm (28 lb-in).

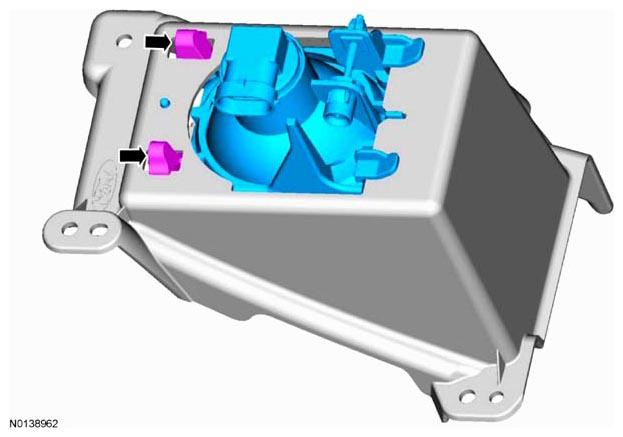

NOTE: Use a 13 mm (0.5 in) diameter tool to collapse the tabs.
