Convertible Backrest: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

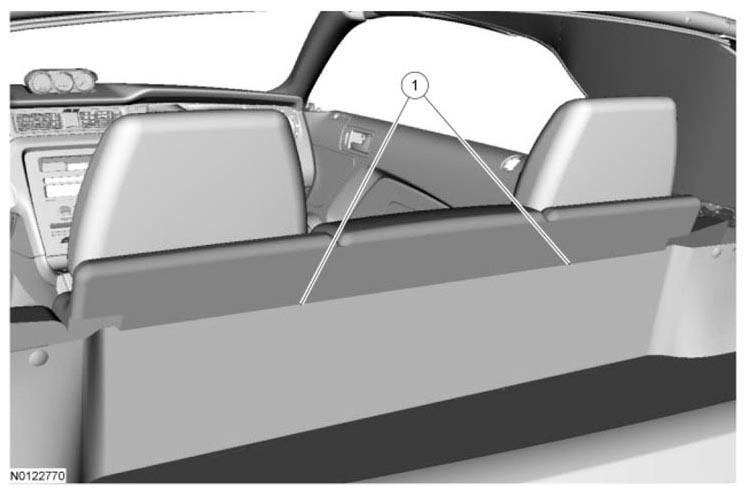

G07477187
Item Part Number Description
1 - J-clip (part of backrest cover [66601] and convertible top housing cover [7654602])

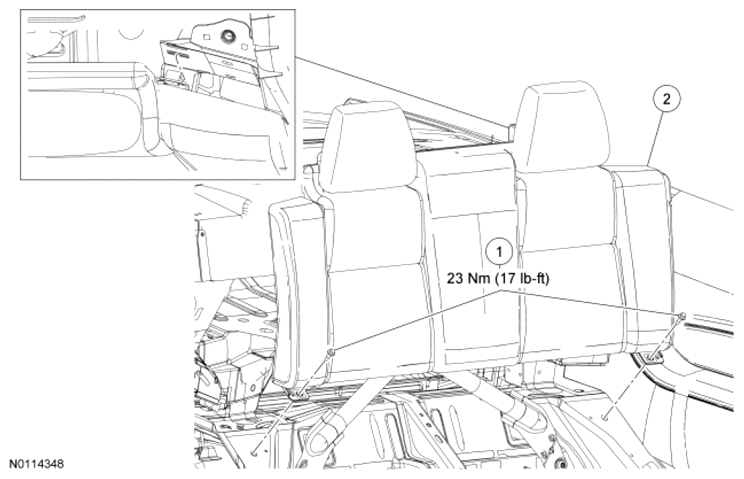

Fig 1: Backrest Assembly And Backrest To Floor Bolts With Torque Specifications
G07477188Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505433 Backrest-to-floor bolts
2 - Backrest assembly
