Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Disconnect the battery. Refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the Air Cleaner (ACL) assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .

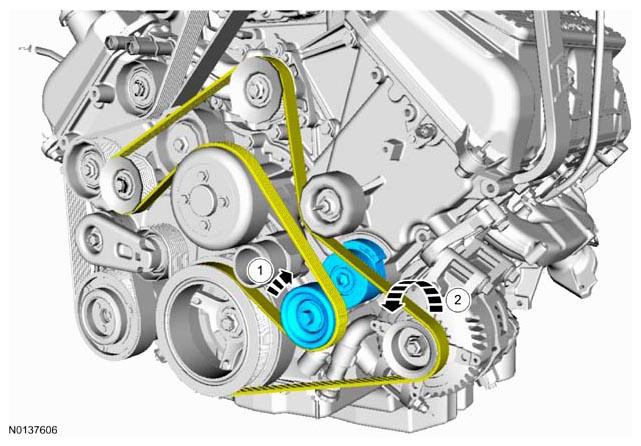

  4. Rotate the FEAD belt tensioner clockwise and position the FEAD belt aside.
    G08646025
  5. NOTE: The 2 upper generator bolts are removed with the generator.

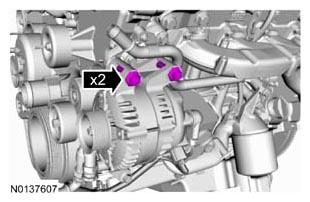

    Completely loosen the 2 upper generator bolts.

    • To install, tighten to 48 Nm (35 lb-ft).
      G08646026
  6. Remove the 3 bolts and lower the underbody shield.
    • To install, tighten to 9 Nm (80 lb-in).
      G07474057

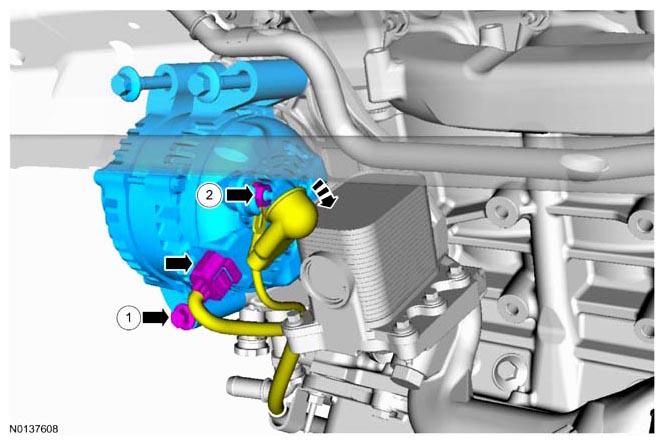

  7. Disconnect the generator electrical connectors and remove the lower generator bolt.
    1. To install, tighten to 48 Nm (35 lb-ft).
    2. To install, tighten to 17 Nm (150 lb-in).
      G08646028
  8. To install, reverse the removal procedure.
