Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the drain plug and drain the transmission fluid.
- Install the drain plug.
- Tighten to 35 Nm (26 lb-ft).

  Fig 1: Identifying Drain Plug
  Courtesy of FORD MOTOR CO.
Disconnect the Output Shaft Speed (OSS) electrical connector.

Fig 2: Disconnecting Output Shaft Speed Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the OSS sensor bolt, then remove OSS sensor.
- To install, tighten to 10 Nm (89 lb-in).

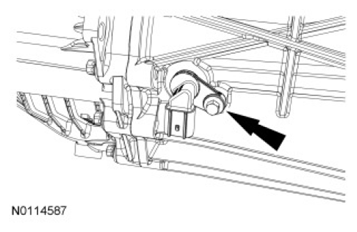

  Fig 3: Locating OSS Sensor Bolt
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
NOTE: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.

Check, and as necessary, fill the transmission with transmission fluid.
