Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Instrument Panel Cluster (IPC). For additional information, refer to INSTRUMENT PANEL CLUSTER (IPC) .
  2. Remove the 2 IPC lens and mask screws.
  3. Release the 8 retaining tabs and remove the IPC lens and mask assembly.

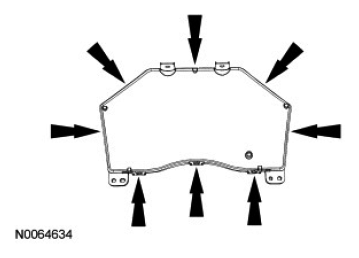

    Fig 1: Locating IPC Lens Retaining Tabs
    G06763358Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
