Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If adding a fifth wheel hitch as a dealer installed accessory, follow the instructions outlined in the Fifth Wheel Hitch instruction sheet to modify the pickup bed floor.

NOTE: F-Super Duty vehicles offer a Tough Bed® option. This consists of a special highly durable, multipart resin which is applied directly to the pickup bed in the assembly plant. Repair of the Tough Bed® has been identified in 2 levels of repairability.

Level 1 damage conditions should be 25.4 mm (1 in) or less in diameter.

Drip
Run
Sag
Gouge
Scrape
Raised blisters

A repair kit has been developed to fix level 1 damage.

Level 2 damage repairs are any defects not meeting level 1 criteria. These repairs require special equipment and must be carried out at a Ford-approved facility using Ford-approved materials.

All Vehicles

Remove the tailgate.
Disconnect the pickup bed rear lighting electrical connector and pushpin retainer.

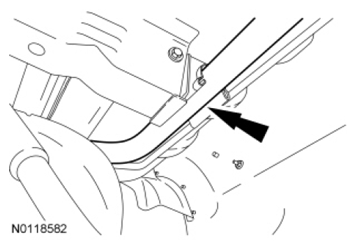

Fig 1: Locating Pickup Bed Rear Lighting Electrical Connector
Courtesy of FORD MOTOR CO.

Fifth Wheel Equipped Vehicles
Disconnect the fifth wheel trailer lighting electrical connector and pushpin retainer.

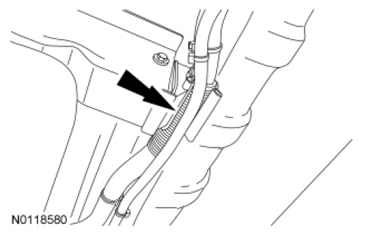

Fig 2: Locating Fifth Wheel Trailer Lighting Electrical Connector And Pushpin Retainer
Courtesy of FORD MOTOR CO.

Gas Engines
Remove the fuel tank filler pipe retaining screws and position the filler pipe aside.

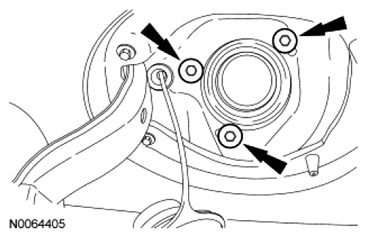

Fig 3: Locating Fuel Tank Filler Pipe Retaining Screws
Courtesy of FORD MOTOR CO.
NOTE: 8-foot pickup box uses an additional fuel filler pipe holding bracket.

Release the fuel filler pipe from the holding bracket.

Fig 4: Locating Holding Bracket Fuel Filler Pipe
Courtesy of FORD MOTOR CO.

Diesel Engines
Remove the reductant tank filler cap and tether strap.
- Remove the fuel tank filler pipe retaining screws and position the filler pipe aside.
- Remove the reductant tank filler pipe retaining screws and position the filler pipe aside.

  Fig 5: Locating Reductant Tank Filler Cap And Tether Strap
  Courtesy of FORD MOTOR CO.
NOTE: 8-foot pickup box with diesel applications use an additional reductant filler pipe holding bracket.

If equipped, release the reductant filler pipe from the holding bracket.

Fig 6: Locating Reductant Filler Pipe
Courtesy of FORD MOTOR CO.

All Vehicles
NOTE: The pickup bed bolts are different lengths. Pay particular attention to the location of each of these bolts to avoid the risk of damage to surrounding components during installation.

NOTE: The pickup bed bolts are a one-time-use and are replaced with new bolts whenever the pickup bed is removed.

Remove and discard the pickup bed bolts.
- To install, tighten to 80 Nm 59 lb-ft).

  Fig 7: Locating Pickup Bed Bolts
  Courtesy of FORD MOTOR CO.
NOTE: Handle the pickup bed carefully when removing from the vehicle to avoid damage to the cab or bed finish.

NOTE: If necessary have assistance when removing the pickup bed from the vehicle.

Carefully lift and remove the pickup bed from the vehicle.
NOTE: New attachment clips must be installed whenever the pickup bed is removed.

Install new attachment clips before reinstalling the pickup bed.
To install, reverse the removal procedure.
