Pickup Bed: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Eight-foot pickup bed shown, all others similar.

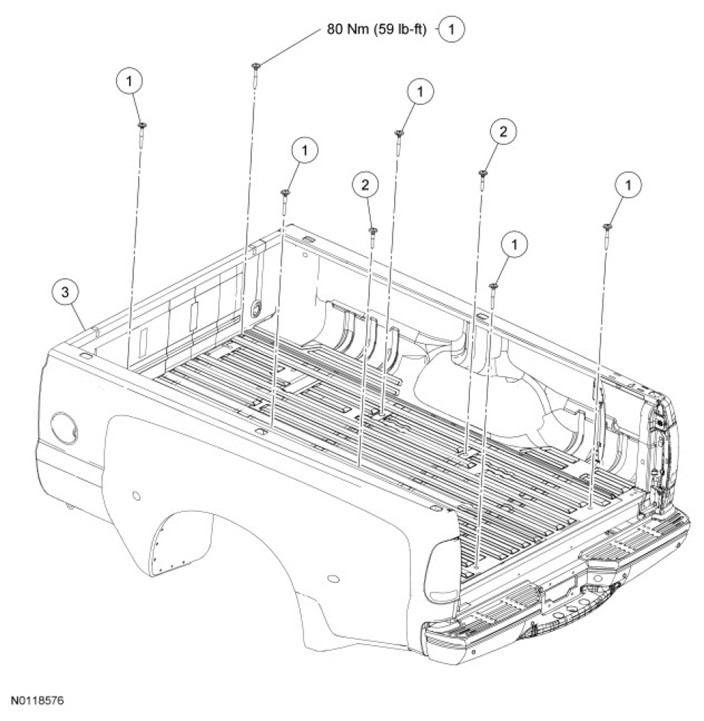

Fig 1: Pickup Bed And Mounting Bolts With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W714262	Pickup bed bolt
2	W714264	Pickup bed bolt
3	28508	Pickup bed (complete assembly)
