Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

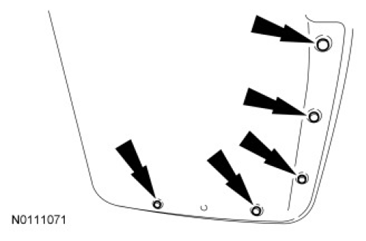

Remove the 14 splash shield pin-type retainers (5 shown).

Fig 1: Locating Splash Shield Pin-Type Retainers
Courtesy of FORD MOTOR CO.

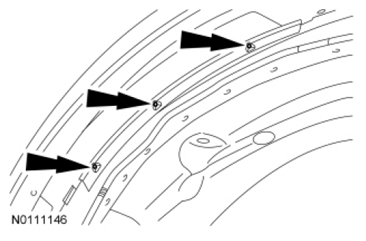

Remove the 2 screws (1 shown) and remove the fender splash shield.

Fig 2: Locating Fender Splash Shield Screws
Courtesy of FORD MOTOR CO.

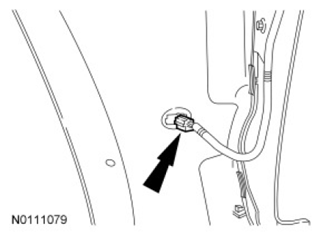

Remove the front and rear parking lamp electrical sockets from the fender.

Fig 3: Locating Rear Parking Lamp Electrical Sockets
Courtesy of FORD MOTOR CO.

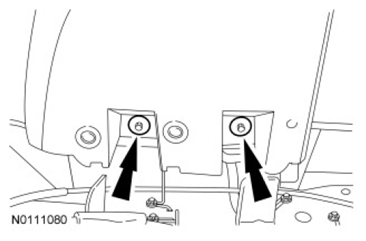

Remove rear fender-to-pickup bed bolts from the bottom front of the fender.
- To install, tighten to 8 Nm (70 lb-in).

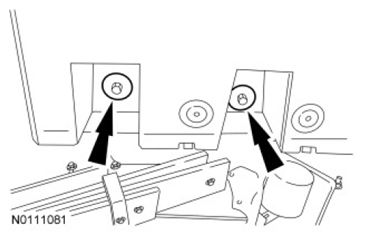

  Fig 4: Locating Rear Fender-To-Pickup Bed Bolts (Front Fender Bottom)
  Courtesy of FORD MOTOR CO.

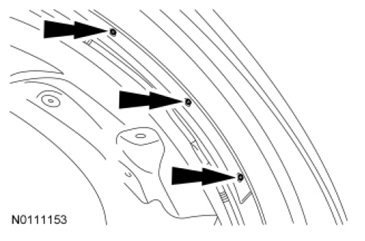

Remove rear fender-to-pickup bed bolts from the bottom rear of the fender.
- To install, tighten to 8 Nm (70 lb-in).

  Fig 5: Locating Rear Fender-To-Pickup Bed Bolts (Rear Fender Bottom)
  Courtesy of FORD MOTOR CO.

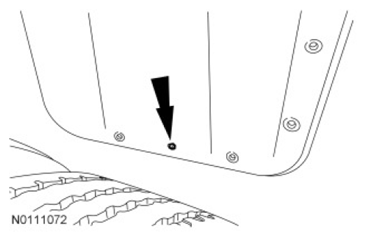

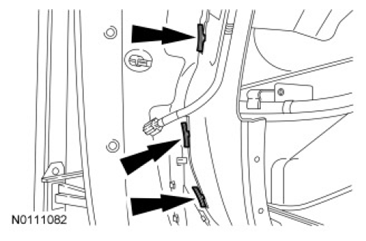

Remove 3 fender nuts from the t-bolts on the front inside of the fender.
- To install, tighten to 5 Nm (44 lb-in).

  Fig 6: Locating Fender Front Inside Nuts
  Courtesy of FORD MOTOR CO.

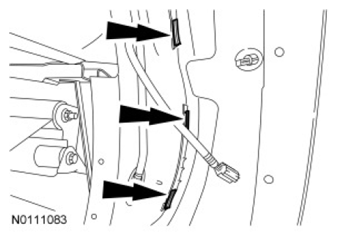

Remove 3 fender nuts from the t-bolts on the rear inside of the fender.
- To install, tighten to 5 Nm (44 lb-in).

  Fig 7: Locating Fender Rear Inside Nuts
  Courtesy of FORD MOTOR CO.
Remove the 3 bolts from the front fender bracket.
- To install, tighten to 9 Nm (80 lb-in).

  Fig 8: Locating Front Fender Bracket Bolts
  Courtesy of FORD MOTOR CO.
Remove the 3 bolts from the rear fender bracket.
- To install, tighten to 9 Nm (80 lb-in).

  Fig 9: Locating Rear Fender Bracket Bolts
  Courtesy of FORD MOTOR CO.

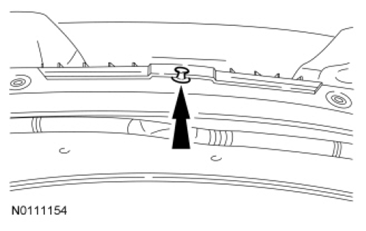

Release the fender from the pushpin hanger by lifting up and remove the fender.

Fig 10: Locating Fender Pushpin Hanger
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
