Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

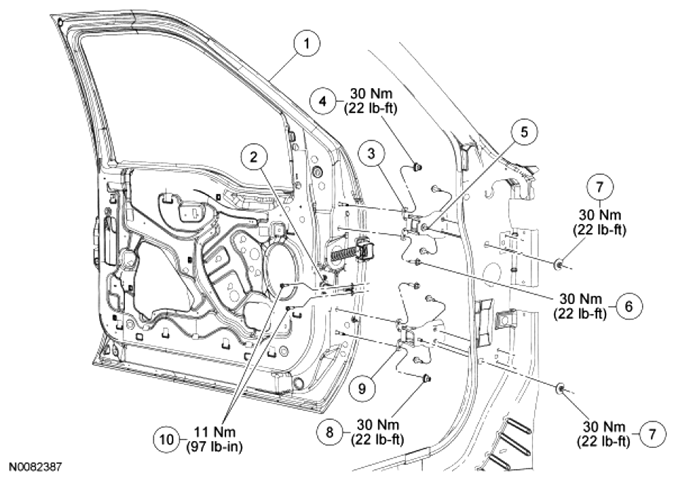

| Item | Part Number | Description |
|---|---|---|
| 1 | 2520124 | Front door assembly |
| 2 | 2523552 | Front door check assembly |
| 3 | 2522800 | Front door hinge - upper |
| 4 | N806738 | Front door hinge-to-door nut (4 required) |
| 5 | - | Front door hinge-to-body stud (part of the front door hinge) |
| 6 | N806738 | Front door hinge-to-door bolt (2 required) |
| 7 | N801193 | Body-to-front door hinge nuts (2 required) |
| 8 | W708880 | Front door hinge-to-door nut (2 required) |
| 9 | 2522810 | Front door hinge - lower |
| 10 | N806972 | Front door check-to-body bolts (2 required) |
