Window Glass - Rear Door, SuperCab: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door upper trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the rear door window glass.
    1. Remove the nuts and clips.
    2. Remove the rear door window glass and frame.

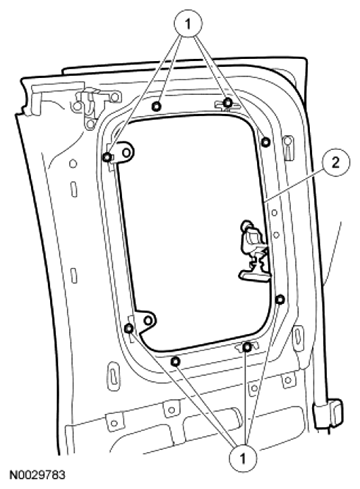

      Fig 1: Identifying Rear Door Window Glass, Frame, Nuts And Clips
      G06780643Courtesy of FORD MOTOR CO.
  3. Remove excess foam butyl from the window frame and window opening.
