Exhaust System (Wide Frame System)
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For narrow frame applications, the locations of the SCR catalyst and the diesel particulate filter are switched.

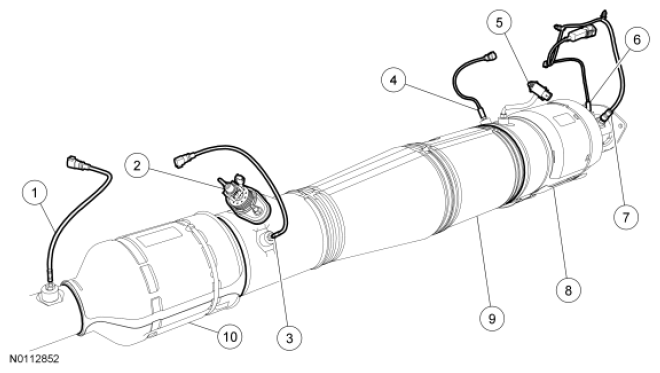

| Item | Number | Description |
|---|---|---|
| 1 | - | Exhaust gas temperature bank 1, sensor 1 (EGT11) |
| 2 | - | Reductant injector |
| 3 | - | Exhaust gas temperature bank 1, sensor 2 (EGT12) |
| 4 | - | Exhaust gas temperature bank 1, sensor 3 (EGT13) |
| 5 | - | Diesel particulate filter pressure sensor |
| 6 | - | Exhaust gas temperature bank 1, sensor 4 (EGT14) |
| 7 | - | NOx sensor |
| 8 | - | Diesel particulate filter |
| 9 | - | Selective catalytic reduction (SCR) catalyst |
| 10 | - | Oxidation catalytic converter (OC) |
