Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the FDIM. Refer to FRONT DISPLAY INTERFACE MODULE (FDIM) .
  2. Remove the media hub. Refer to MEDIA HUB .

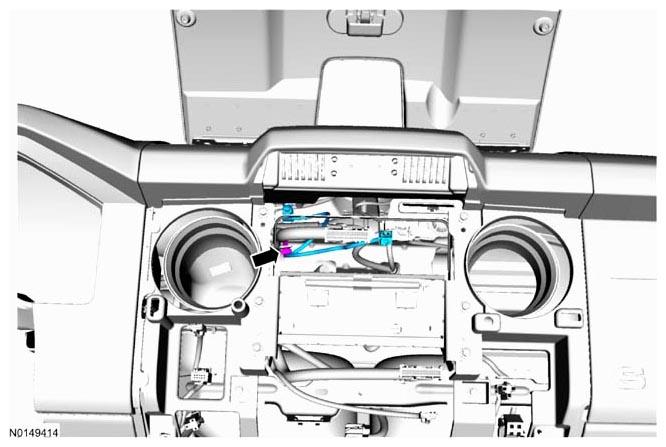

  3. G08595689
  4. To install, reverse the removal procedure.
