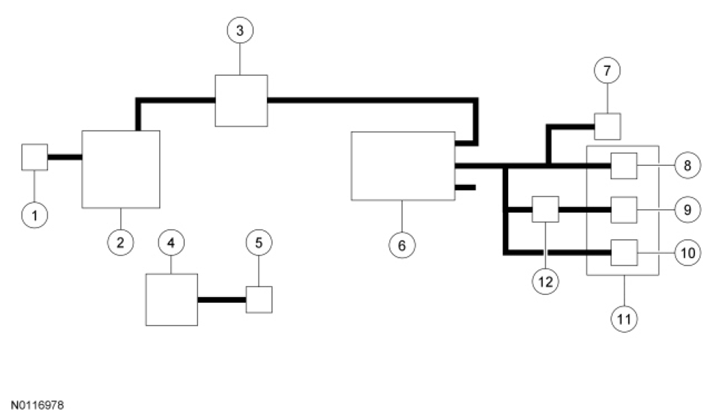

Vehicle Emission Vacuum Routing: Pickup
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K773 | PCV valve |
| 2 | 9424 | Intake manifold |
| 3 | 9F933 | Evaporative Emission (EVAP) canister purge valve |
| 4 | 6582 | Valve cover |
| 5 | 9B659 | Intake air expansion resonator (6.2L)/Air Cleaner (ACL) outlet pipe (6.8L) |
| 6 | 9C985 | EVAP canister |
| 7 | 9034 | Fuel filler vent tube |
| 8 | - | Fuel vent valve |
| 9 | 9H307 | Fuel pump module |
| 10 | - | Fuel vent valve |
| 11 | 9002 | Fuel tank |
| 12 | - | Fuel tank pressure sensor (part of 9S278) |
