Transmission Fluid Cooler Tubes-TorqShift®6, 6.2L
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

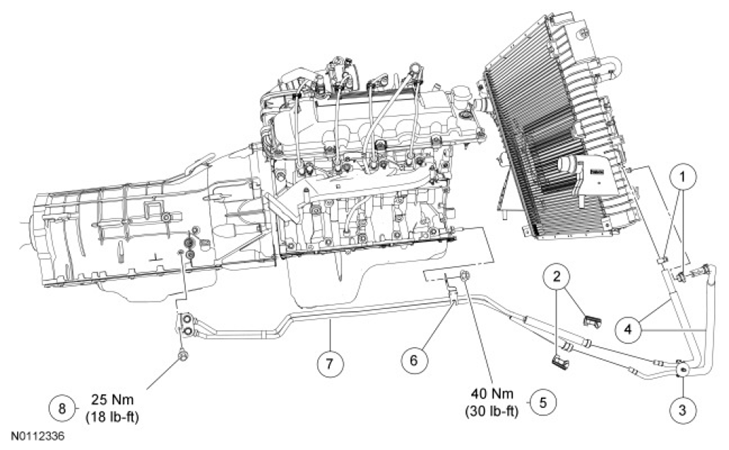

Fig 1: Identifying Transmission Fluid Cooler Tubes And Related Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Hose clamps |
| 2 | 7Z465 | Transmission fluid cooler tube secondary latches |
| 3 | - | Front transmission fluid cooler tube assembly-to-frame retainer (part of 7R081) |
| 4 | 7R081 | Front transmission fluid cooler tube assembly |
| 5 | W520113 | Rear transmission fluid cooler tube bracket nut |
| 6 | - | Rear transmission fluid cooler tube assembly bracket (part of 7R081) |
| 7 | 7R081 | Rear transmission fluid cooler tube assembly |
| 8 | W715131 | Rear transmission fluid cooler tube assembly bolt |
