Applique - Rear: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: A new applique must be installed when removing the existing applique. Lower clips on the applique are not accessible and will break the applique when removing.

Remove the tailgate access panel. Refer to HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS .
If equipped, remove the video camera. Refer to PARKING AID .
- To install, tighten to 4 Nm (35 lb-in).

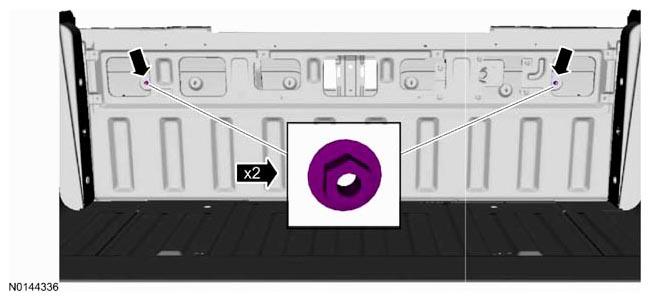

  Fig 1: Locating Tailgate Access Panel Nuts
  Courtesy of FORD MOTOR CO.

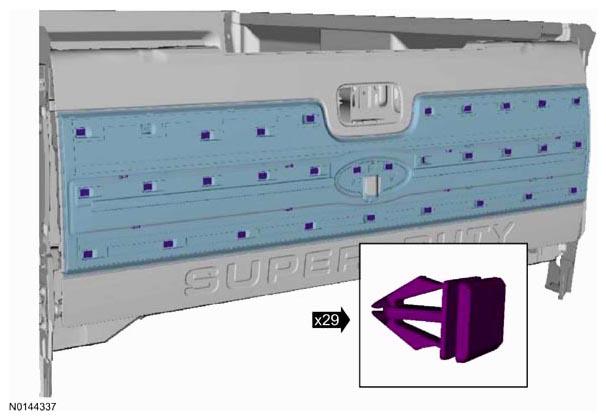

Fig 2: Locating Tailgate Access Panel Clips
Courtesy of FORD MOTOR CO.
