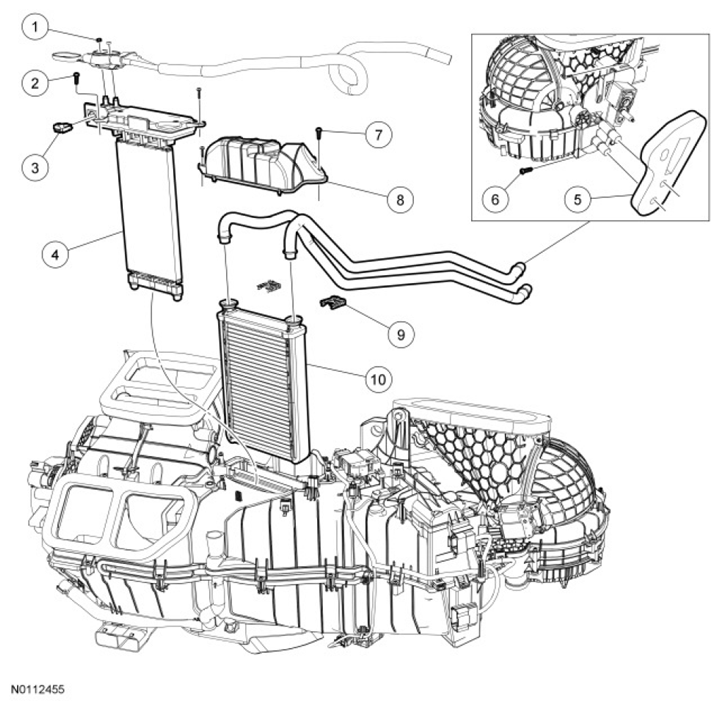

Heater Components
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Auxiliary electric heater battery cable nuts (2 required) |
| 2 | - | Auxiliary Heater Control Module (AHCM) screw (2 required) |
| 3 | - | AHCM electrical connector (part of 19D605) |
| 4 | 18K463 | Auxiliary Heater Control Module (AHCM) |
| 5 | 19C593 | Dash panel seal |
| 6 | - | Heater tube bracket screw (2 required) |
| 7 | - | Heater core cover screw (2 required) |
| 8 | 18B300 | Heater core cover |
| 9 | 8287 | Heater tube clip (2 required) |
| 10 | 18476 | Heater core |
