Heating Ventilation Air Conditioning (HVAC) Module: Removal
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- If installing a new HVAC module, upload the HVAC module configuration to the scan tool. Refer to
MODULE CONFIGURATION
.
Vehicles with electronic automatic temperature control or electronic manual temperature control remote mount

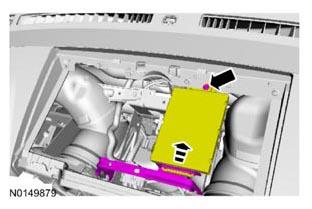

- Remove the instrument panel upper storage compartment. Refer to Storage Compartment-Upper in INSTRUMENT PANEL AND CONSOLE .
Vehicles with electronic manual temperature control base

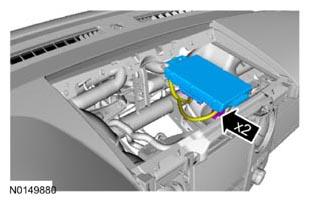

- Remove the instrument panel finish panel - center, lower. Refer to INSTRUMENT PANEL AND CONSOLE .
