A/C Lines
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

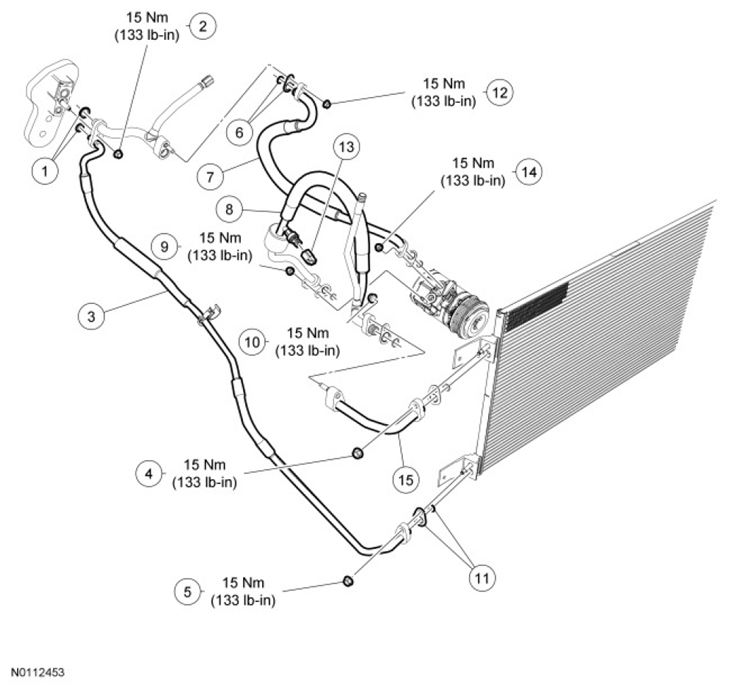

| Item | Part Number | Description |
|---|---|---|
| 1 | 19B596 | Thermostatic Expansion Valve (TXV) fitting gasket seals (2 pieces from kit required) |
| 2 | W520413 | TXV fitting nut |
| 3 | 19835 | Condenser-to-evaporator line |
| 4 | W520413 | Condenser inlet fitting nut |
| 5 | W520413 | Condenser outlet fitting nut |
| 6 | 19B596 | O-ring seal and gasket seal kit (2 required) |
| 7 | 19867 | Evaporator-to-compressor suction line |
| 8 | 19972 | Compressor-to-condenser discharge line |
| 9 | W520413 | A/C compressor discharge fitting nut |
| 10 | W520413 | Condenser inlet jumper line fitting nut (6.7L Diesel only) |
| 11 | 19B596 | O-ring seal and gasket seal kit (3 required) |
| 12 | W520413 | Evaporator-to-compressor suction line fitting nut |
| 13 | - | A/C pressure transducer electrical connector (part of 12A581) |
| 14 | W520413 | A/C compressor suction fitting nut |
| 15 | 19E631 | Condenser inlet jumper line (6.7L Diesel only) |
