Front Disc Brake: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |
| Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) XL-1 (US); CXC-51-A (Canada) |
- |

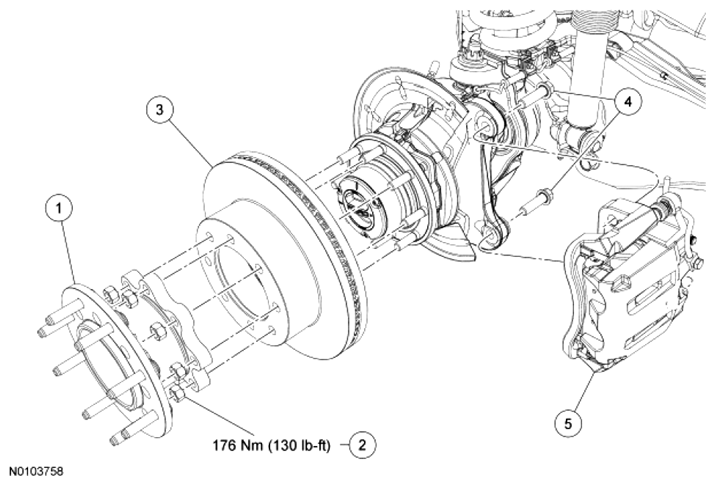

| Item | Part Number | Description |
|---|---|---|
| 1 | 1125 | Wheel hub extender |
| 2 | W520506 | Wheel hub extender nut (8 required) |
| 3 | 1104 | Brake disc |
| 4 | N811625 | Brake caliper anchor plate bolts (2 required) |
| 5 | - | Brake caliper and anchor plate assembly |
