Front Disc Brake Shield: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

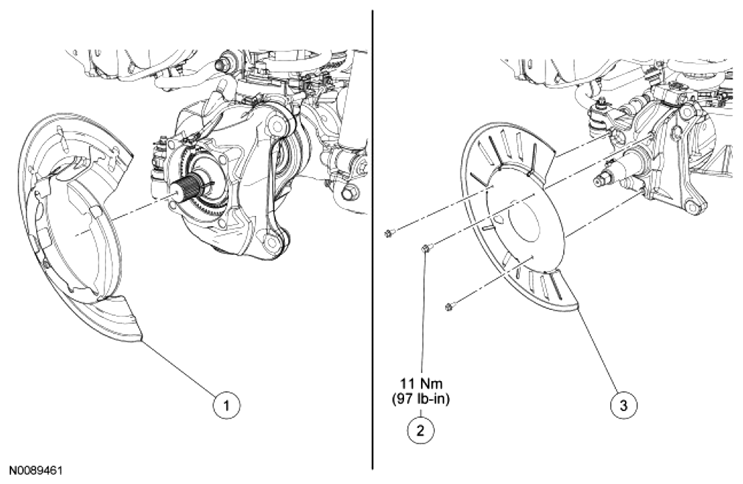

Fig 1: Disc Brake Shield With Torque Specifications (Front)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1214	Brake disc shield (Four-Wheel Drive (4WD))
2	N611172	Brake disc shield screws (3 required)
3	2K004 LH/2K005 RH	Brake disc shield (Rear Wheel Drive (RWD))
