Front Brake Flexible Hose: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

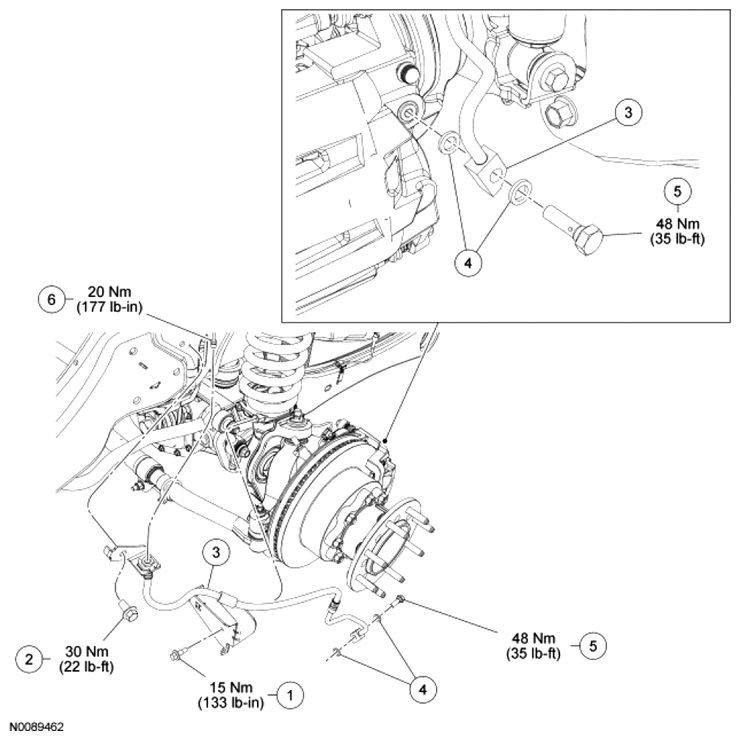

| Item |
Part Number |
Description |
| 1 |
W506421 |
Brake flexible hose lower bracket bolt |
| 2 |
N605891 |
Brake flexible hose upper bracket bolt |
| 3 |
2078 |
Brake flexible hose |
| 4 |
388949 |
Copper washers (2 required) |
| 5 |
385116 |
Brake caliper flow bolt |
| 6 |
- |
Brake tube fitting |
