Front Brake Caliper: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |
NOTE:

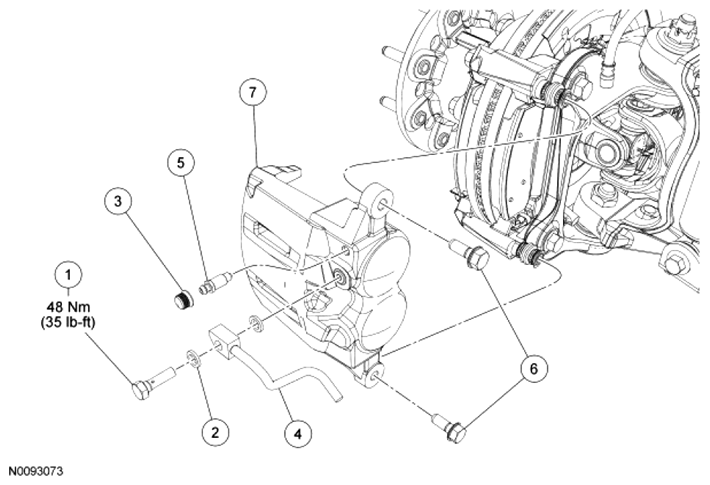

F250/350 shown in illustration, F450/550 similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 385116 | Brake caliper flow bolt |
| 2 | 388949 | Copper washer (2 required) |
| 3 | 2L126 | Bleeder screw cap |
| 4 | 2078 | Brake flexible hose |
| 5 | 2208 | Brake bleeder screw |
| 6 | 2C588 | Brake caliper bolts (2 required) |
| 7 | 2B120 | Brake caliper |
