Front Brake Caliper Anchor Plate: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |
NOTE:

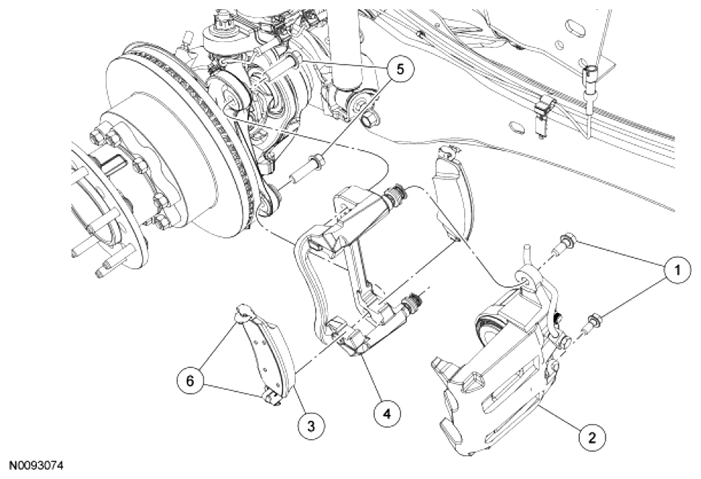

F250/350 shown in illustration, F450/550 similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C588 | Brake caliper bolts (2 required) |
| 2 | 2B120 | Brake caliper |
| 3 | 2001 | Brake pad |
| 4 | 2B292 | Brake caliper anchor plate |
| 5 | N811625 | Brake caliper anchor plate bolts (2 required) |
| 6 | - | Brake pad retraction clips (part of 2001) (4 required) |
