Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. For additional information, refer to STEERING COLUMN .
  2. Disconnect the tow/haul switch electrical connector.
    G08602275

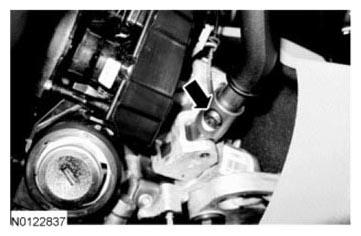

  3. Remove and discard the selector lever bolt.
    • To install, tighten to 18 Nm (159 lb-in).
      G07412463
  4. Remove the selector lever.
  5. To install, reverse the removal procedure.
