Brake Shift Interlock Actuator: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park position switch.

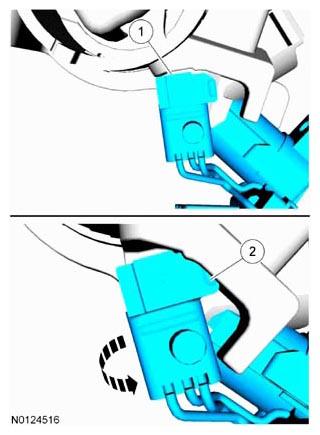

    1. Place the large plunger on the park position switch in the locating hole and position the switch as shown in illustration.
    2. Rotate the park position switch counterclockwise making sure the tab locks under the housing lip.
      G08602252
  2. Verify small plunger is fully extended.
    G08341229
  3. Install the BSIA.
    1. Insert the BSIA into the selector lever mechanism housing.
    2. Gently push the snap lock clip in place.
      G08341230
  4. Install the BSIA screw.
    • Tighten to 2 Nm (18 lb-in).
      G08341225
  5. Install the selector lever mechanism. For additional information, refer to SELECTOR LEVER MECHANISM .
