PINPOINT TEST L: DTCs B00D5:11, B00D5:12 AND B00D5:13

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy and cause serious personal injury or death.
NOTE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough INSPECTION AND VERIFICATION  before proceeding with the pinpoint test.
NOTE: SRS components should only be disconnected or reconnected when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the parts catalog to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. L1 RETRIEVE RCM DTCs
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B00D5:11, B00D5:12 or B00D5:13 retrieved on-demand during self-test?
    • Yes  : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.

      For DTC B00D5:11, GO to L2.

      For DTC B00D5:13, GO to  L4.

      For DTC B00D5:12, GO to  L8.

    • No  : This is an intermittent fault when present as a CMDTC only. GO to  L11.
  2. L2 CHECK THE PAD INDICATOR CIRCUIT FOR A SHORT TO GROUND
    • Ignition OFF.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Disconnect: Center Stack Switch Assembly C2114.
    • Measure the resistance between center stack switch assembly C2114-2, circuit RR116 (BN/GN), harness side and ground.

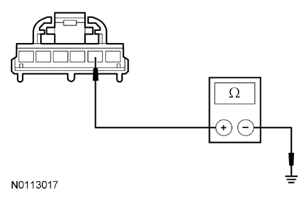

      Fig 1: Measuring Resistance Between Center Stack Switch Assembly C2114-2, Circuit RR116 (BN/GN) And Ground
      G07975735Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to  L10.
    • No  : GO to L3.
  3. L3 CHECK THE RCM FOR LOW RESISTANCE
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: RCM C310A and C310B.
    • Measure the resistance between center stack switch assembly C2114-2, circuit RR116 (BN/GN), harness side and ground.
      Fig 2: Measuring Resistance Between Center Stack Switch Assembly C2114-2, Circuit RR116 (BN/GN) And Ground
      G07975735Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to  L10.
    • No  : REPAIR circuit RR116 (BN/GN). GO to  L12.
  4. L4 CHECK THE PAD INDICATOR CIRCUIT FOR AN OPEN
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: RCM C310A and C310B.
    • Disconnect: Center Stack Switch Assembly C2114.
    • Measure the resistance between center stack switch assembly C2114-2, circuit RR116 (BN/GN), harness side and RCM C310A-22, circuit RR116 (BN/GN), harness side.

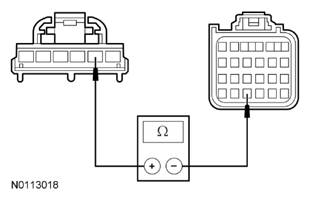

      Fig 3: Measuring Resistance Between Center Stack Switch Assembly C2114-2, Circuit RR116 (BN/GN) And RCM C310A-22, Circuit RR116 (BN/GN)
      G07975737Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohm?
    • Yes  : GO to L5.
    • No  : REPAIR circuit RR116 (BN/GN). GO to  L12.
  5. L5 CHECK THE IGNITION CIRCUIT AT THE PAD INDICATOR FOR VOLTAGE
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Measure the voltage between center stack switch assembly C2114-3, circuit CBP41 (BU), harness side and ground.

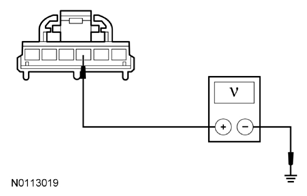

      Fig 4: Measuring Voltage Between Center Stack Switch Assembly C2114-3, Circuit CBP41 (BU) And Ground
      G07975738Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to L6.
    • No  : VERIFY BCM fuse 41 (7.5A) is OK. If OK, REPAIR circuit CBP41 (BU). If not OK, REFER to the SYSTEM WIRING DIAGRAMS to identify the possible causes of the circuit short. GO to  L12.
  6. L6 CHECK THE PAD INDICATOR
    • Ignition OFF.
    • Connect: Center Stack Switch Assembly C2114.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Connect a fused jumper wire between RCM C310A-22, circuit RR116 (BN/GN), harness side and ground.
      Fig 5: Connecting Fused Jumper Wire Between RCM C310A-22, Circuit RR116 (BN/GN) And Ground
      G06100086Courtesy of FORD MOTOR CO.
    • Ignition ON.
    • Does the PAD indicator illuminate?
  7. L7 CHECK THE RCM CONFIGURATION
    • Ignition OFF.
    • Connect: RCM C310A and C310B.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Carry out PMI for the RCM. Use As-Built data when carrying out PMI.
    • Enter the following diagnostic mode on the scan tool: Clear DTCs - RCM.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Is DTC B00D5:13 retrieved on-demand during self-test?
    • Yes  : GO to  L10.
    • No  : The fault is no longer present and was caused by an incorrect RCM configuration. GO to  L12.
  8. L8 CHECK THE PAD INDICATOR CIRCUIT FOR A SHORT TO VOLTAGE

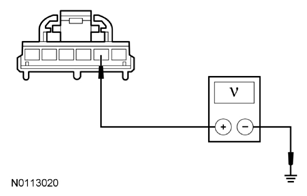

    • Yes  : REPAIR circuit RR116 (BN/GN). GO to  L12.
    • No  : GO to L9.
  9. L9 CHECK THE RCM
    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Prior to reconnecting any previously disconnected SRS component:
      • inspect connector(s) (including any in-line connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B CPA lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) .
      • repair any concerns found. Refer to "OEM Connector Repair Procedures" Article for schematic and connector information.
    • Connect: RCM C310A and C310B.
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • DIAGNOSTIC TIP:  When viewing DTCs with the PAD indicator disconnected, an open circuit fault would normally be retrieved.
    • Did the on-demand DTC change from B00D5:12 to B00D5:13?
  10. L10 CONFIRM THE RCM FAULT
    NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
    • Ignition OFF.
    • If not previously directed to do so, depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Prior to reconnecting any previously disconnected SRS component:
      • inspect connector(s) (including any in-line connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B CPA lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) .
      • repair any concerns found. Refer to "OEM Connector Repair Procedures" Article for schematic and connector information.
    • Connect: Center Stack Switch Assembly C2114.
    • Connect: RCM C310A and C310B (if previously disconnected).
    • Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was the original DTC retrieved on-demand during self-test?
    • Yes  : INSTALL a new RCM. REFER to RESTRAINTS CONTROL MODULE (RCM) . GO to  L12.
    • No  : In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test  . GO to L11.
  11. L11 CHECK FOR AN INTERMITTENT FAULT
    • Ignition OFF.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Disconnect: Center Stack Switch Assembly C2114.
      • inspect connector(s) (including any in-line connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • repair any concerns found. Refer to "OEM Connector Repair Procedures" Article for schematic and connector information.
    • Connect: All Previously Disconnected Component(s)/Connector(s).
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B00D5:11, B00D5:12 or B00D5:13 retrieved on-demand during self-test?
    • Yes  : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.

      For DTC B00D5:11, GO to  L2.

      For DTC B00D5:13, GO to  L4.

      For DTC B00D5:12, GO to  L8.

    • No  : CHECK for causes of intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition frequently. ACTIVATE other systems in the same wire harness. Do not  install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test. GO to L12.
  12. L12 CHECK FOR ADDITIONAL SRS DTCs
    • Ignition OFF.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Reconnect all SRS components (if previously disconnected).
    • If previously directed to depower the SRS, repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Are any RCM DTCs retrieved on-demand during self-test?
    • Yes  : Do not clear any DTCs until all DTCs have been resolved. GO to the DTC CHARTS  for pinpoint test direction.
    • No  : CLEAR all RCM CMDTCs. PROVE OUT the SRS. The repair is complete. RETURN the vehicle to the customer.
