Vacuum Hoses and Solenoid Electrical Connector
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

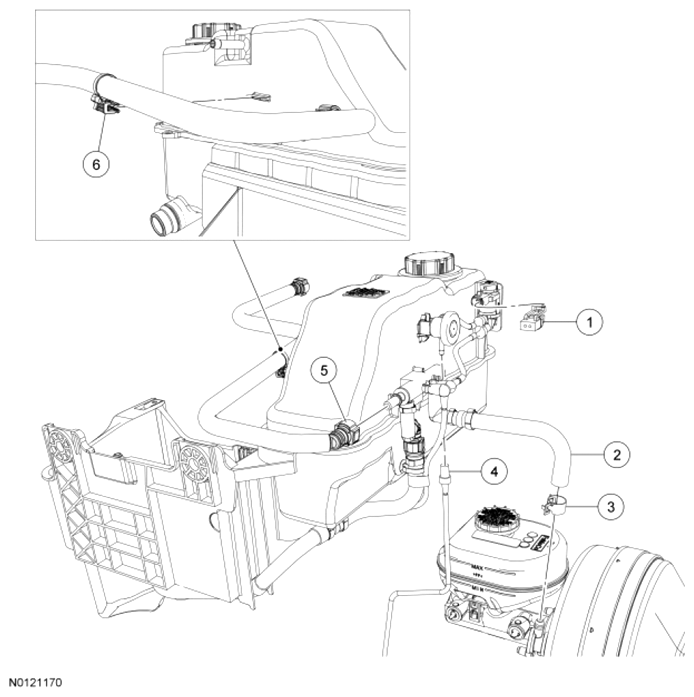

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Solenoid electrical connector (part of 12A581) |
| 2 | - | Brake booster vacuum hose (part of 9C439) |
| 3 | - | Brake booster vacuum hose clamp (part of 9C439) |
| 4 | 3C124 | Four-Wheel Drive (4WD) front wheel locking hub vacuum hose |
| 5 | - | Vacuum supply hose |
| - | Vacuum supply hose retainer |
