Coolant Hoses, Bolts and Degas Bottle: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

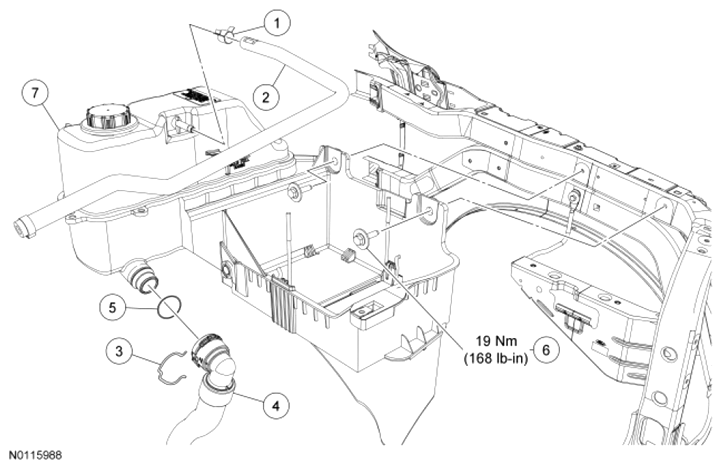

Fig 1: Coolant Hoses, Degas Bottle, Bolts And Related Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W525884 | Radiator-to-degas bottle hose clamp |
| 2 | 8W005 | Radiator-to-degas bottle hose |
| 3 | 8D037 | Degas bottle-to-engine hose spring clip |
| 4 | 8C351 | Degas bottle-to-engine hose |
| 5 | 8D058 | Degas bottle-to-engine hose O-ring seal |
| 6 | W701835 | Degas bottle bolt |
| 7 | 6A987 | Degas bottle, vacuum reservoir and battery tray assembly |
