Primary Radiator Overflow Hose, EGR Cooler-to-Secondary Degas Bottle Hose and Charge Air Cooler (CAC) and Fuel Cooler-to-Secondary Degas Bottle Hose
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

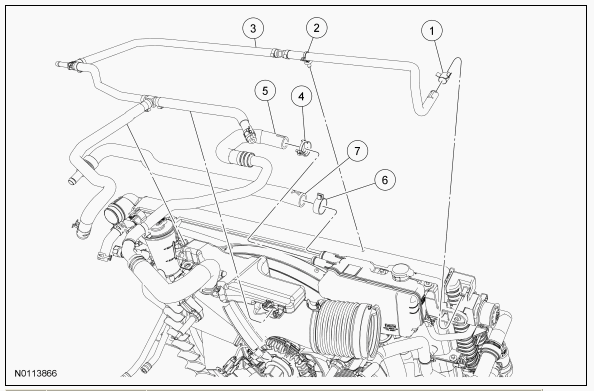

Fig 1: Identifying Primary Radiator, EGR Cooler-To-Secondary Degas Bottle, Charge Air Cooler And Fuel Cooler-To-Secondary Degas Bottle Hoses And Clamps
| Item | Part Number | Description |
|---|---|---|
| 1 | W525884 | Primary radiator overflow hose clamp |
| 2 | - | Primary radiator overflow hose retainer (part of 8W005) |
| 3 | 8W005 | Primary radiator overflow hose |
| 4 | W527362 | EGR cooler-to-secondary degas bottle hose clamp |
| 5 | 9Y439 | EGR cooler-to-secondary degas bottle hose |
| 6 | W527366 | CAC and fuel cooler-to-secondary degas bottle hose clamp |
| 7 | 8C481 | CAC and fuel cooler-to-secondary degas bottle hose |
