Power Steering Fluid Reservoir, LH Air Deflector Pushpins and Power Steering Gear-to-Power Steering Fluid Cooler Hose
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

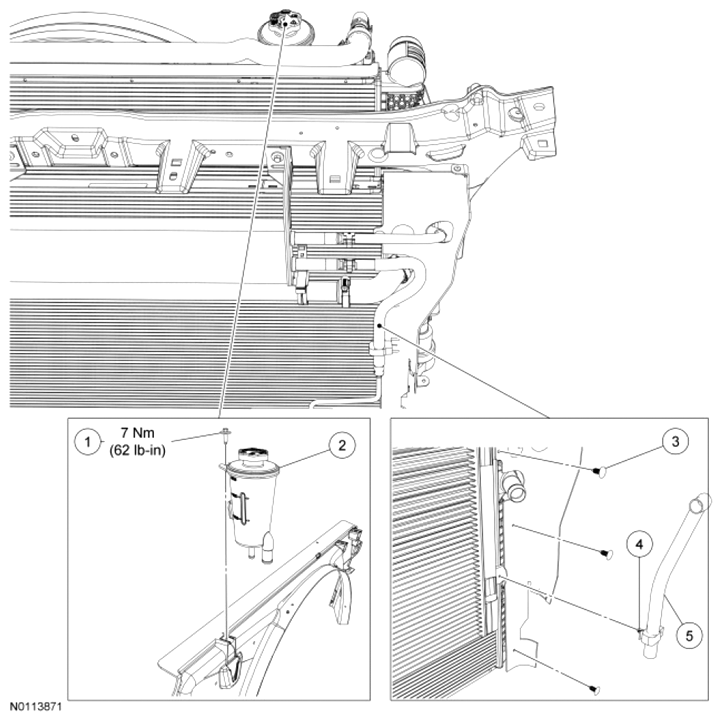

Fig 1: Power Steering Fluid Reservoir And Power Steering Gear-To-Power Steering Fluid Cooler Hose With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W503924 | Power steering fluid reservoir bolt |
| 2 | 3R700 | Power steering fluid reservoir |
| 3 | 388577 | LH air deflector pushpins (3 required) |
| 4 | 8D044 | Power steering gear-to-power steering cooler hose retainer |
| 5 | 3A713 | Power steering gear-to-power steering cooler hose |
