Crew Cab

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

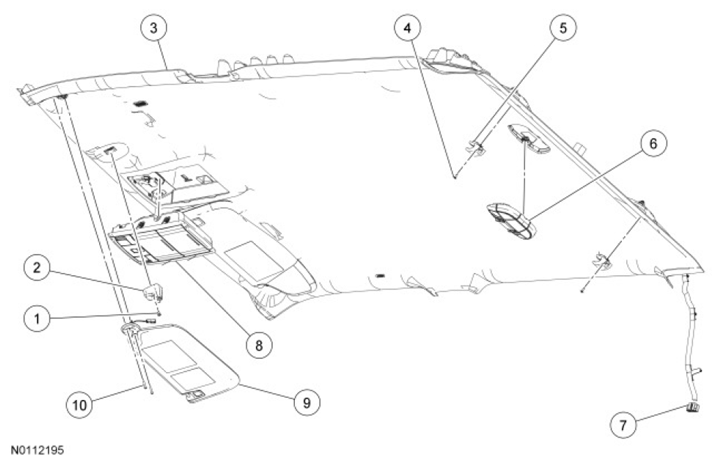

Fig 1: Identifying Headliner (Crew Cab)
G07485562Courtesy of FORD MOTOR CO.
Item Part Number Description
1 25041A20 Sun visor retaining clip
2 W502660 Sun visor retaining clip screw
3 51944 Headliner
4 29024 Garment hook
5 W502660 Garment hook screw
6 13776 Interior lamp
7 14A005 Headliner electrical harness
8 54519A70 Overhead console
9 04104 RH/04105 LH Sun visor
10 W502564 Sun visor screws (2 required)
