Door Trim Panel - Rear, SuperCab

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

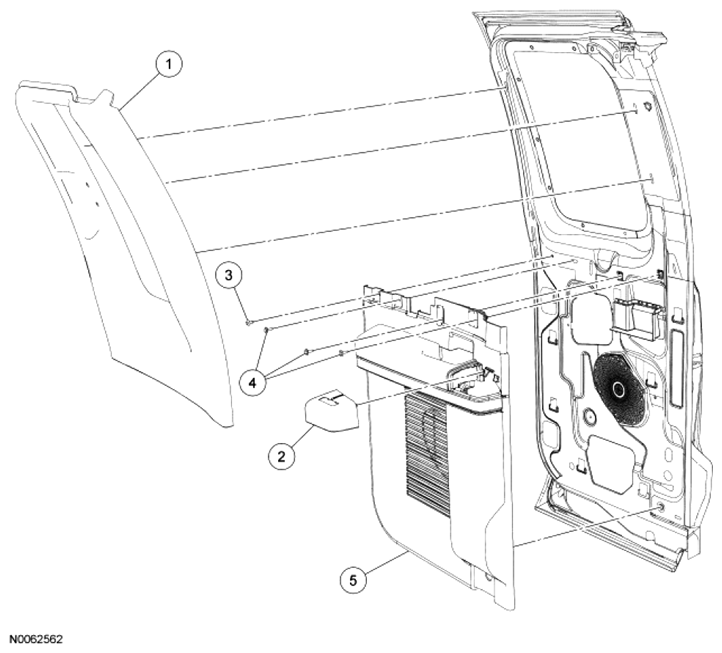

Fig 1: Identifying Rear Door Trim Panel Components (SuperCab)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	25508 RH/25509 LH	Rear door upper trim panel
2	60220-A RH/60220-B LH	Shoulder safety belt finish trim panel
3	N807673	Scrivet
4	W505920	Rear door lower trim panel screws (3 required)
5	27406 RH/27407 LH	Rear door lower trim panel

Upper door trim panel

NOTE: LH side shown, RH side similar.

Remove the 2 rear window latch screws and position aside the rear window latch.

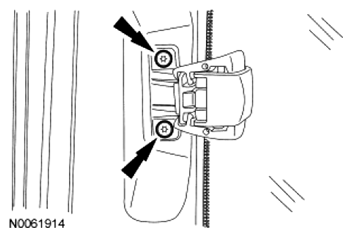

Fig 2: Locating Rear Window Latch Screws
Courtesy of FORD MOTOR CO.
NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide.

Remove the shoulder safety belt guide.
1. Position the shoulder safety belt guide cover upward.
2. Remove the shoulder safety belt guide bolt.
  - To install, tighten to 40 Nm (30 lb-ft).
3. Remove the shoulder safety belt guide.

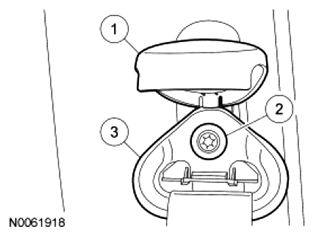

  Fig 3: Identifying Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the rear door upper trim panel.
- Pull outward to release the rear door upper trim panel clips.
Lower door trim panel
Lift up and remove the shoulder safety belt finish trim panel.
- Route the shoulder safety belt through the shoulder safety belt finish trim panel opening.

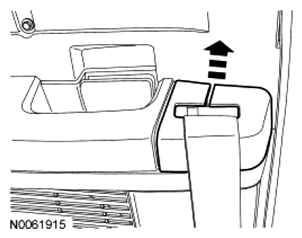

  Fig 4: Removing Shoulder Safety Belt Finish Trim Panel
  Courtesy of FORD MOTOR CO.
Remove the safety belt anchor.
- Position the safety belt anchor cover downward.
- Remove the safety belt anchor bolt.
  - To install, tighten to 40 Nm (30 lb-ft).
- Remove the safety belt anchor.

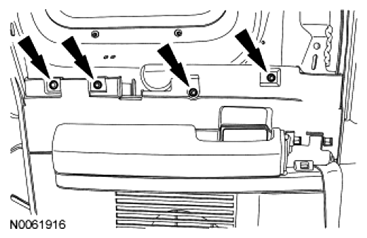

Remove the scrivet and the 3 rear door lower trim panel screws.

Fig 5: Locating Rear Door Lower Trim Panel Screws
Courtesy of FORD MOTOR CO.
NOTE: Do not pull directly outward on the rear door lower trim panel as damage will occur.

Pull straight up to remove the rear door lower trim panel.
- Route the shoulder safety belt through the lower rear door trim panel opening.
Upper and lower door trim panels
NOTE: Insert the rear door lower trim panel tabs first or they can break when installing the rear door lower trim panel.

NOTE: To avoid damage to the upper door trim panel, remove any retaining clips from the door and attach them to the upper door trim panel before installing.

To install, reverse the removal procedure.
