Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat(s) in the forwardmost position.
  2. Remove the RH and LH B-pillar trim panels. For additional information, refer to B-PILLAR TRIM PANEL - REGULAR CAB .
  3. Remove the 4 cab rear trim panel pushpin retainers.

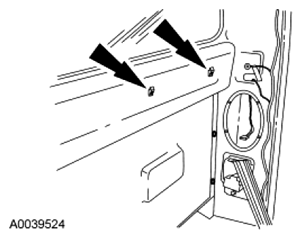

    Fig 1: Locating Four Push Pins
    G06779590Courtesy of FORD MOTOR CO.
  4. Remove the cab rear trim panel.
  5. To install, reverse the removal procedure.
