Wheel Speed Sensor - Front, Rear Wheel Drive (RWD): Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

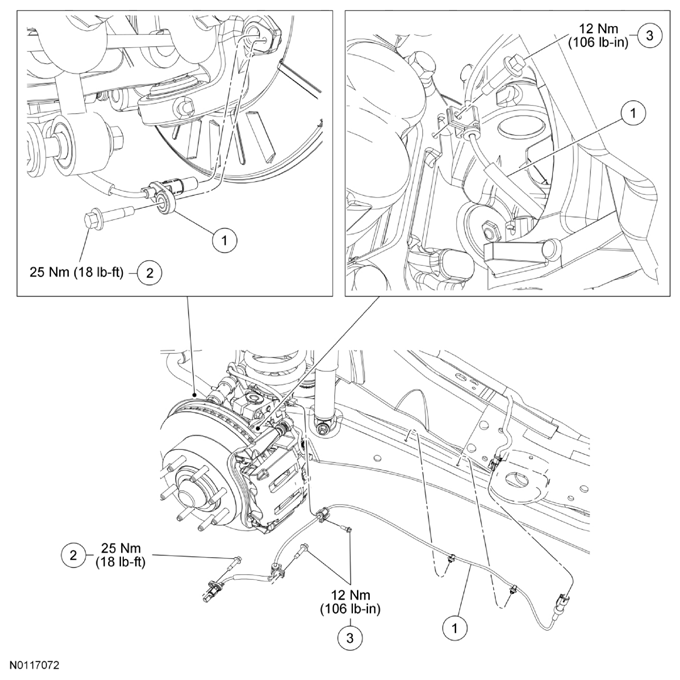

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications (RWD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C204	Front wheel speed sensor
2	W506424	Front wheel speed sensor bolt
3	W710279	Front wheel speed sensor harness bolts (2 required)
