Wheel Speed Sensor - Front, Four Wheel Drive (4WD): Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

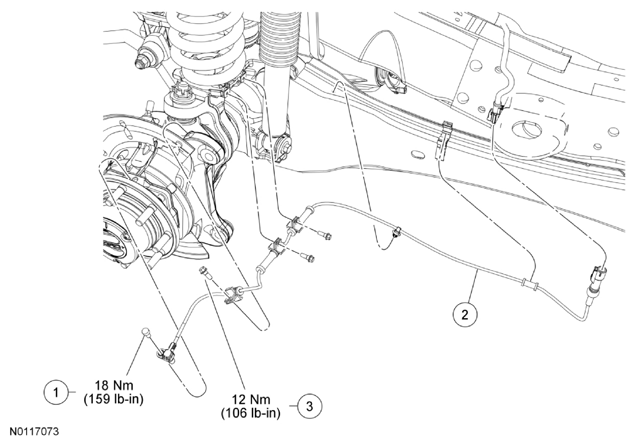

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications (4WD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front wheel speed sensor bolt (part of 2C204)
2	2C204	Front wheel speed sensor
3	W710279	Front wheel speed sensor harness bolt (3 required)
