Rear Brake Caliper Support Bracket: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

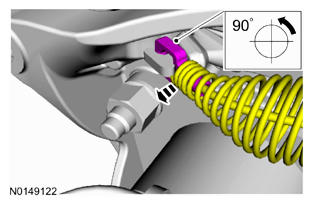

Remove the parking brake shoes. Refer to PARKING BRAKE AND ACTUATION .
Single Rear Wheel (SRW) vehicles
Remove the wheel hub. Refer to WHEEL HUBS AND BEARINGS - FULL FLOATING AXLE - FORD .

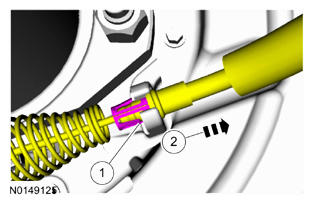

F250, F350 vehicles

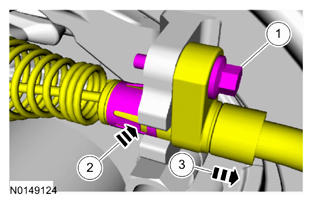

- To install, tighten to 12 Nm (106 lb-in).
- To install, tighten to 137 Nm (101 lb-ft).

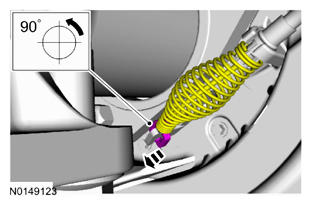

F450, F550 vehicles
- To install, tighten to 137 Nm (101 lb-ft).
