Rear Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in SERVICE INFORMATION . Failure to follow this instruction may result in serious personal injury.
  1. Remove the brake pads. Refer to BRAKE PADS - F-250, F-350  or BRAKE PADS - F-450, F-550 .

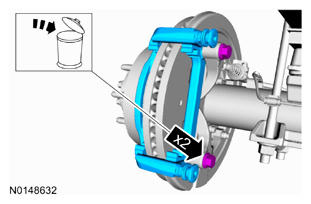

  2. NOTE: F250, F350 shown, F450, F550 similar.
    • For F-250/350, tighten the new bolts to 275 Nm (203 lb-ft).
    • For F-450/550, tighten the new bolts to 400 Nm (295 lb-ft).
      G08601714
