SPECIAL TOOLS DESCRIPTION
| Adapter for 303-224 (Handle) 205-153 (T80T-4000-W) |
|
| Installer, Axle Bearing 205-099 (T75T-1225-A) |
|
| Installer, Axle Bearing 205-100 (T75T-1225-B) |
|
| Installer, Differential Bearing Cup 308-163 (T88C-77000-FH) (use as Hub Inner Bearing and Seal Remover) |
|
| Installer, Wheel Hub Oil Seal (10 1/2 inch) 205-422 |
|
| Remover, Wheel Hub Inner Bearing Cup (10 1/2 inch) 205-421 |
|
| Remover, Wheel Hub Outer Bearing Cup (10 1/2 inch) 205-420 |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
NOTE:

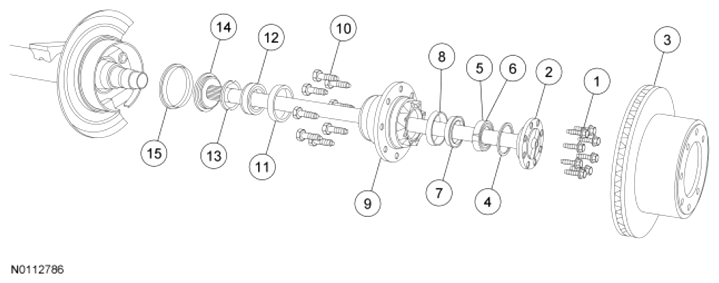

Single Rear Wheel (SRW) shown, Dual Rear Wheels (DRW) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714981 | Axle shaft bolt (8 required) |
| 2 | 4234 | Axle shaft |
| 3 | 2C026 | Brake disc rotor (Single Rear Wheel (SRW)) |
| 3 | 2C026 | Wheel hub and brake disc (Dual Rear Wheels (DRW)) |
| 4 | 390258 | O-ring |
| 5 | 1A124 | Wheel hub nut (RH) |
| 6 | 1A125 | Wheel hub nut (LH) |
| 7 | 1240 | Outer bearing cone and roller |
| 8 | 1239 | Outer bearing cup |
| 9 | 1A034 | Rear wheel hub |
| 10 | 1107 | Wheel studs |
| 11 | 1243 | Inner bearing cup |
| 12 | 1244 | Inner bearing cone and roller |
| 13 | 4670 | Slinger |
| 14 | 1177 | Wheel hub seal |
| 15 | Anti-lock speed sensor ring |
