Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

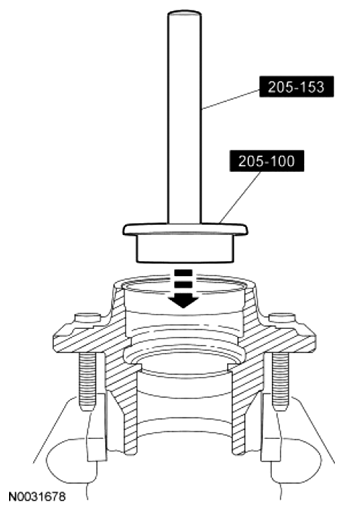

With the wheel hub facing upward, position the new outer bearing cup in the wheel hub bore and place the Handle and Axle Bearing Installer on the bearing cup.

Fig 1: Positioning Outer Bearing Cup In Wheel Hub Bore And Placing Handle And Axle Bearing Installer On Bearing Cup
Courtesy of FORD MOTOR CO.
Using the Handle and Axle Bearing Installer, drive the outer bearing cup into the fully seated position.

Fig 2: Driving Outer Bearing Cup Into Fully Seated Position
Courtesy of FORD MOTOR CO.

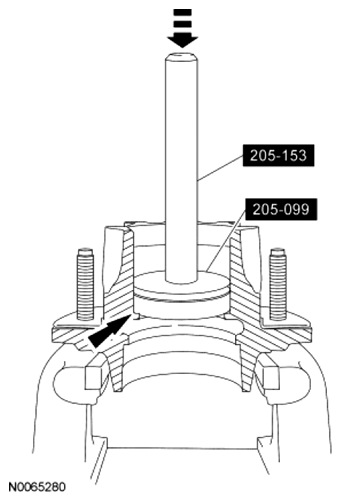

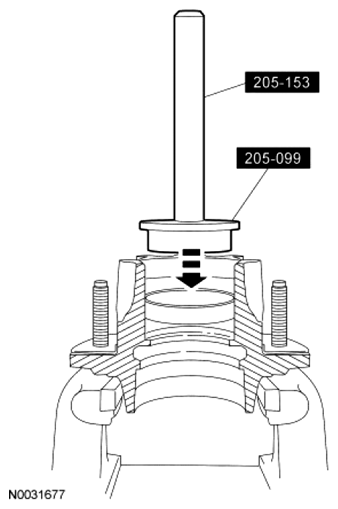

Reposition the wheel hub facing downward. Position the inner bearing cup in the wheel hub bore and place the Handle and Axle Bearing Installer on the bearing cup.

Fig 3: Positioning Inner Bearing Cup In Wheel Hub Bore And Placing Handle And Axle Bearing Installer On Bearing Cup
Courtesy of FORD MOTOR CO.

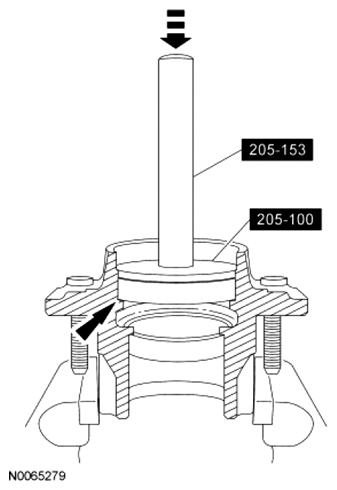

Using the Handle and Axle Bearing Installer, drive the inner bearing cup into the fully seated position.

Fig 4: Driving Inner Bearing Cup Into Fully Seated Position
Courtesy of FORD MOTOR CO.
NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing.

Position the greased inner bearing in the inner bearing cup.

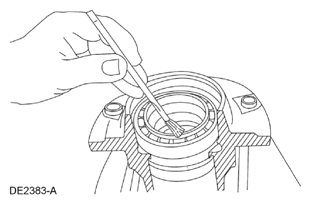

Fig 5: Applying Grease To Thrust Surface Of Bearing
Courtesy of FORD MOTOR CO.
NOTE: The slinger must be correctly centered on the bearing or damage to the components can occur.

NOTE: The grease on the bearing and slinger holds the slinger in position during seal installation.

Position the slinger on the greased bearing with the tangs facing the bearing.

Fig 6: Positioning Slinger On Greased Bearing With Tangs Facing Bearing
Courtesy of FORD MOTOR CO.

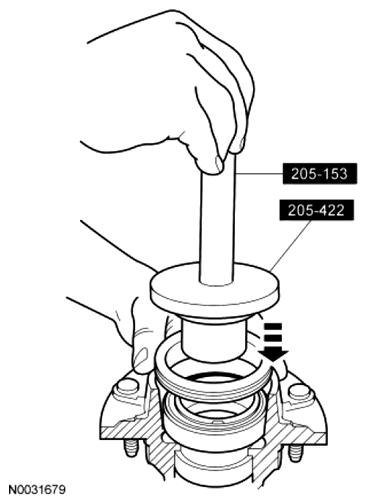

With the slinger in place, position the wheel hub seal in the wheel hub bore and place the Handle and Wheel Hub Oil Seal Installer on the wheel hub seal.

Fig 7: Positioning Wheel Hub Seal In Wheel Hub Bore And Placing Handle And Wheel Hub Oil Seal Installer On Wheel Hub Seal
Courtesy of FORD MOTOR CO.

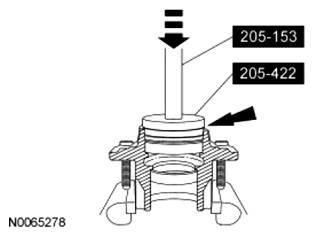

Using the Handle and Wheel Hub Oil Seal Installer and holding the Handle straight, drive the wheel hub seal into position so that the seal flange bottoms out in the wheel hub.
- Verify that the slinger is correctly centered in the bore.

  Fig 8: Driving Wheel Hub Seal
  Courtesy of FORD MOTOR CO.
Install the wheel hub. For additional information, refer to WHEEL HUB .
