Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier. For additional information, refer to DIFFERENTIAL CASE .
  2. Remove the LH differential carrier bearing. For additional information, refer to DIFFERENTIAL BEARINGS .
  3. Remove the ELD retaining ring and washer.

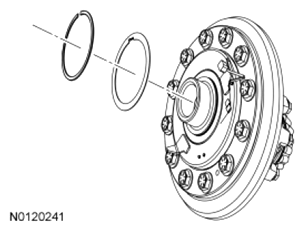

    Fig 1: Identifying ELD Retaining Ring And Washer
    G07478634Courtesy of FORD MOTOR CO.
  4. Remove the ELD coil.
    Fig 2: Removing ELD Coil
    G07478635Courtesy of FORD MOTOR CO.
  5. Remove the thrust bearing and thrust plate.
    Fig 3: Identifying Thrust Bearing And Thrust Plate
    G07478636Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
