Pinpoint Test Aa: The Trailer Reversing Lamps Are Inoperative

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Before beginning diagnostics, visually inspect the trailer tow connector mounted on the bumper for signs of corrosion or damage. Repair or install a new trailer tow connector as required.
  1. AA1 CHECK FOR VOLTAGE THROUGH THE TRAILER TOW CONNECTOR
    • Apply the parking brake.
    • Ignition ON.
    • Select REVERSE.
    • Measure the voltage between the trailer tow connector reversing lamp voltage supply pin, circuit CAT16 (GY/BN), component side and ground.
      Fig 1: Measuring Voltage Between Trailer Tow Connector Reversing Lamp Voltage Supply Pin And Ground
      G06065336Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : The vehicle is operating correctly. SEND the trailer to an authorized camper/trailer repair facility.
    • No  : VERIFY the BJB fuse 70 (10A) is OK. If OK, GO to AA2. If not OK, REFER to the SYSTEM WIRING DIAGRAMS to identify the possible causes of the circuit short.
  2. AA2 CHECK FOR VOLTAGE TO THE TRAILER TOW CONNECTOR (VEHICLE HARNESS)
    • Ignition OFF.
    • Disconnect: Trailer Tow C4099.
    • Ignition ON.
    • Select REVERSE.
    • Measure the voltage between the trailer tow C4099-7, circuit CAT16 (GY/BN), harness side and ground.
      Fig 2: Measuring Voltage Between Trailer Tow C4099-7, Circuit CAT16 (GY/BN) And Ground
      G06065337Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : INSTALL a new trailer tow connector. TEST the system for normal operation.
    • No  : GO to AA3.
  3. AA3 CHECK THE TRAILER TOW REVERSING LAMP RELAY
    • Ignition OFF.
    • Disconnect: Trailer Tow Parking Lamp Relay.
    • Substitute a known good relay.
    • Ignition ON.
    • Select REVERSE.
    • Measure the voltage between the trailer tow C4099-7, circuit CAT16 (GY/BN), harness side and ground.
      Fig 3: Measuring Voltage Between Trailer Tow C4099-7, Circuit CAT16 (GY/BN)
      G06065337Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : REMOVE the known good relay. INSTALL a new trailer tow reversing lamp relay. TEST the system for normal operation.
    • No  : REMOVE the known good relay. GO to AA4.
  4. AA4 CHECK FOR VOLTAGE TO THE TRAILER TOW REVERSING LAMP RELAY COIL
    • Measure the voltage between the trailer tow reversing lamp relay pin 1, circuit CLS28 (BU/WH), BJB face side and ground.

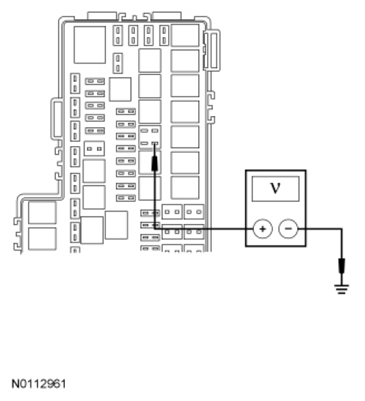

      Fig 4: Measuring Voltage Between Trailer Tow Reversing Lamp Relay Pin 1, Circuit CLS28 (BU/WH), BJB Face Side And Ground
      G07485128Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to AA5.
    • No  : REPAIR circuit CLS28 (BU/WH) for an open. TEST the system for normal operation.
  5. AA5 CHECK THE TRAILER TOW REVERSING LAMP RELAY BJB VOLTAGE SUPPLY
    • Ignition OFF.
    • Measure the voltage between the trailer tow reversing lamp relay pin 3, circuit SBB70 (BN/RD), BJB face side and ground.

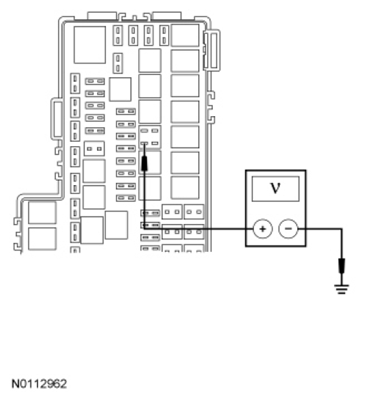

      Fig 5: Measuring Voltage Between Trailer Tow Reversing Lamp Relay Pin 3, Circuit SBB70 (BN/RD), BJB Face Side And Ground
      G07485129Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to AA6.
    • No  : REPAIR circuit SBB70 (BN/RD) for an open. TEST the system for normal operation.
  6. AA6 CHECK THE TRAILER TOW REVERSING LAMP RELAY GROUND CIRCUIT FOR AN OPEN
    • Measure the voltage between the trailer tow reversing lamp relay pin 3, circuit SBB70 (BN/RD), BJB face side and the trailer tow reversing lamp relay pin 2, circuit GD122 (BK), BJB face side.

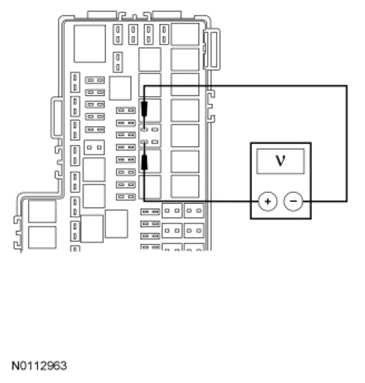

      Fig 6: Measuring Voltage Between Trailer Tow Reversing Lamp Relay Pin 3, Circuit SBB70 (BN/RD) And Relay Pin 2, Circuit GD122 (BK), BJB Face Side
      G07485130Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : REPAIR circuit CAT16 (GY/BN) for an open. TEST the system for normal operation.
    • No  : REPAIR circuit GD122 (BK) for an open. TEST the system for normal operation.
