F-450 and F-550: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

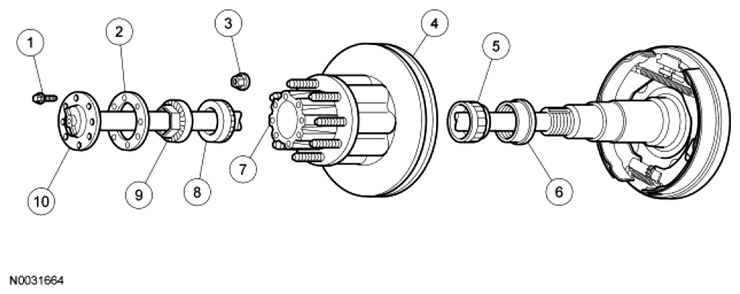

Fig 1: Identifying Wheel Bearings, Wheel Hub Seal And Wheel Bearing Cups Related Components - F-450 And F-550
| Item | Part Number | Description |
|---|---|---|
| 1 | 4A140 | Axle shaft bolt |
| 2 | 1001 | Rear axle shaft gasket |
| 3 | 1012 | Wheel nut |
| 4 | 2C026 | Brake disc |
| 5 | 1244 | Inner rear wheel bearing |
| 6 | 1175 | Hub seal |
| 7 | 1109 | Rear hub (includes bearing cups) |
| 8 | 1240 | Outer rear wheel bearing |
| 9 | 1A124 | Hub nut |
| 10 | 4234 | Axle shaft |
