Front Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: F250, F350 shown, F450, F550 similar.
  1. Remove the brake pads. Refer to BRAKE PADS .
    • To install F-250, F-350, tighten the new bolts to 225 Nm (166 lb-ft).
    • To install F-450, F-550, tighten the new bolts to 350 Nm (258 lb-ft).

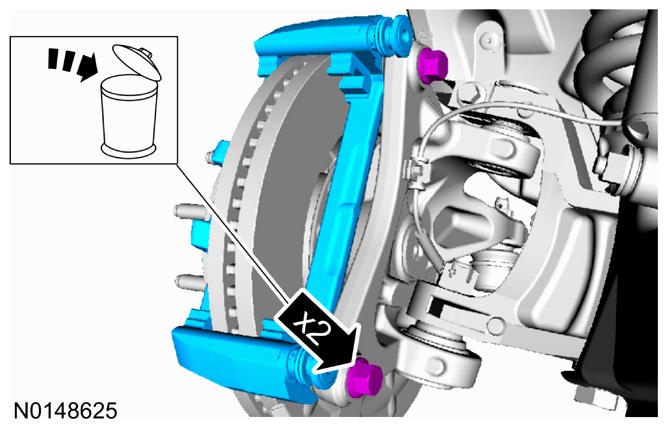

      G08601687
