F-350 Single Rear Wheel (SRW), Narrow Frame Vehicles: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

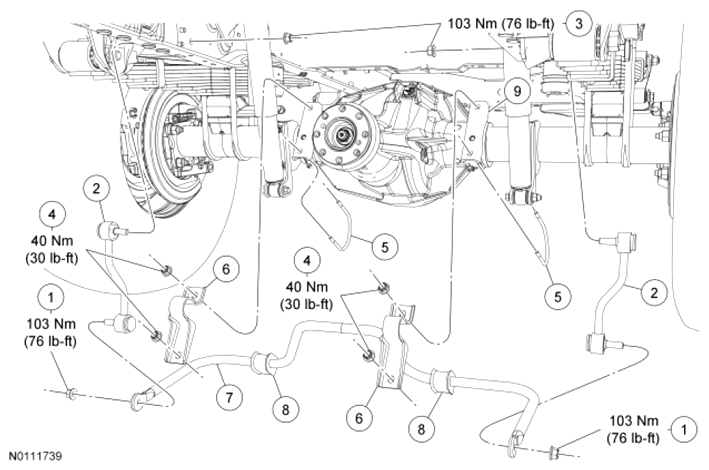

Fig 1: Stabilizer Bar And Link Related Replacement Components With Torque Specifications -- (F-350 Single Rear Wheel, Narrow Frame Vehicles)
| Item | Part Number | Description |
|---|---|---|
| 1 | W520214 | Stabilizer bar link lower nuts (2 required) |
| 2 | 5K484 | Stabilizer bar links (2 required) |
| 3 | W520214 | Stabilizer bar link upper nuts (2 required) |
| 4 | W520113 | Stabilizer bar bracket nuts (4 required) |
| 5 | 4A340 | Stabilizer bar bracket U-bolts (2 required) |
| 6 | 5486 | Stabilizer bar brackets (2 required) |
| 7 | 5A772 | Stabilizer bar |
| 8 | 5493 | Stabilizer bar bushings |
| 9 | 5B498 | Stabilizer bar mounting bracket (2 required) |
