6.8L Engine
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

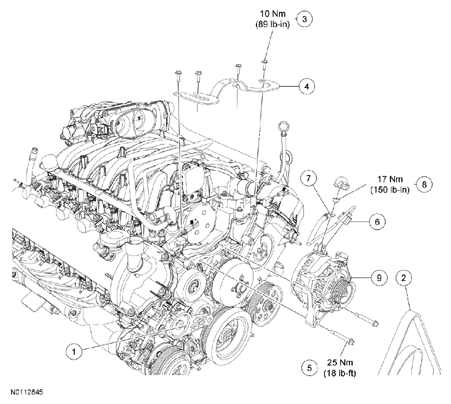

Fig 1: Generator Related Replacement Components With Torque Specifications -- Gasoline Engines (6.8L Engine)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B209 | Accessory drive belt tensioner |
| 2 | 8620 | Accessory drive belt |
| 3 | N807309 | Generator bracket bolts (4 required) |
| 4 | 10153 | Generator bracket |
| 5 | N811334 | Generator bolts (2 required) |
| 6 | - | Generator electrical connector (part of 14305) |
| 7 | - | Generator B+ terminal (part of 14305) |
| 8 | W711953 | Generator B+ terminal nut |
| 9 | 10300 | Generator |
All vehicles
- Disconnect the battery. For additional information, refer to
GENERAL PROCEDURES
.
6.8L vehicles
- Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
6.2L vehicles
- Remove the air intake expansion resonator. For additional information, refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
All vehicles
- Release the accessory drive belt tension and remove the drive belt from the generator pulley.
- Disconnect the generator electrical connector.
- Remove the nut and position the generator B+ terminal aside.
- To install, tighten to 17 Nm (150 lb-in).
6.2L vehicles
- Remove the 3 bolts, the generator bracket and the generator.
- To install, tighten to 47 Nm (35 lb-ft).
6.8L vehicles
- Remove the 4 bolts and the generator bracket.
- To install, tighten to 10 Nm (89 lb-in).
- Remove the 2 generator bolts and the generator.
- To install, tighten to 25 Nm (18 lb-ft).
All vehicles
- To install, reverse the removal procedure.
